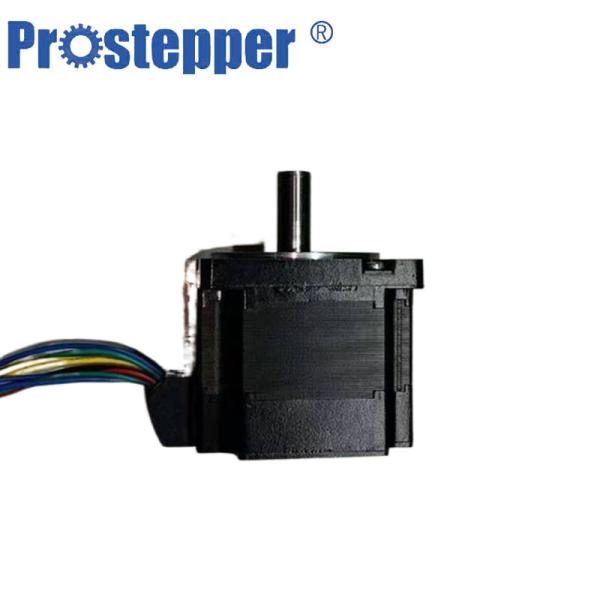

3 phase 60 mm small vibration Brushless DC motor 300W Black for
solar energy equipment
Product description
Specifications of brushless motor
| Sensor | Hall sensor |
| Insulation Grade | Class 8 (130 degree) |
| IP Rate | IP40 |
| Operating Temperature | -10 degree to +50 degree(Non condensing) |
| Operating Humidity | 85% RH Max(Non condensing) |
| Operating Environment | No corrosive gas or dust
No directly contact with water, oil, etc |
| Model | 60BLM100 | 60BLM200 | 60BLM300 |
| Length mm | 52 | 84 | 116 |
| Voltage VDC | 48 | 48 | 48 |
| Rated Power Watts | 100 | 200 | 300 |
| Rated Speed RPM | 4000 | 4000 | 4000 |
| Rated Torque N.m | 0.23 | 0.47 | 0.71 |
| Rated Current A rms | 2.9 | 5.6 | 8.4 |
| Back EMF Coefficient Vrms/rad | 0.088 | 0.086 | 0.087 |
| Resistance Ohm | 1.38 | 0.54 | 0.38 |
| Inductance mH | 1.35 | 0.7 | 0.43 |
| Maximum Speed | 5000 | 5000 | 5000 |
| Inertia g.m2 | 0.0148 | 0.0279 | 0.0425 |
| Phase | 3 | 3 | 3 |
| Pole | 5 | 5 | 5 |
How does a brushless motor work?
In a brushed DC motor, the rotor spins 180-degrees when an electric current is run to
the armature. ... In brushless DC motors, the permanent magnets are on the rotor, and the electromagnets
are on the stator. A computer then charges the electromagnets in
the stator to rotate the rotor a full 360-degrees
What are Brushless DC Motors Used For?
Brushless DC motors typically have an efficiency of 85-90%, while
brushed motors are usually only 75-80% efficient. Brushes
eventually wear out, sometimes causing dangerous sparking, limiting
the lifespan of a brushed motor. Brushless DC motors are quiet,
lighter and have much longer lifespans. Because computers control
the electrical current, brushless DC motors can achieve much more
precise motion control.
Because of all these advantages, brushless DC motors are often used
in modern devices where low noise and low heat are required,
especially in devices that run continuously. This may include
washing machines, air conditioners and other consumer electronics.
They may even be the main power source for service robots, which
will require very careful control of force for safety reasons.
Brushless DC motors provide several distinct advantages over other
types of electric motors, which is why they’ve made their way into
so many household items and may be a major factor in the growth of
service robots inside and outside of the industrial sector.
Why choose us ?
a.Choose the raw material materials from the famous brand supplier
in China or abroad
b. Each spare parts are controlled strictly in all the production
process
c.High performance optimized design of the electromagnetic circuit,
increasing the torque of the motor, lower the rising range of
temperature on the motor, promote the motor running more stable.
d. Precise position control
e. Forward / reverse rotation, emergency stop and lock function
f. Effective angle and speed control
g.Mechanical size 100% meet the requirements of customer’s
h. Try best to create the solution for the customer’s specialized
requirements, we also can provide door-to-door service
Can you provide us the following information of brushless motor ?
There are serveral important items: size, length of motor, torque,
voltage, current etc.
After confirm some them and told us, we can send you the suitable
one.
You can send us the model you are using, we can hep you find out
the most suitable one.
Our Customer service about brushless dc motor
1. Before sign an offical contract with our customer , we will help
to analyze and provide professional solution based on customer
project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied
within 24 hours.
3. Keep informing our customer production process and help arrange
quality checking in the factory if necessary.
4. One-year warranty to our display and one year waranty to spare
parts.
