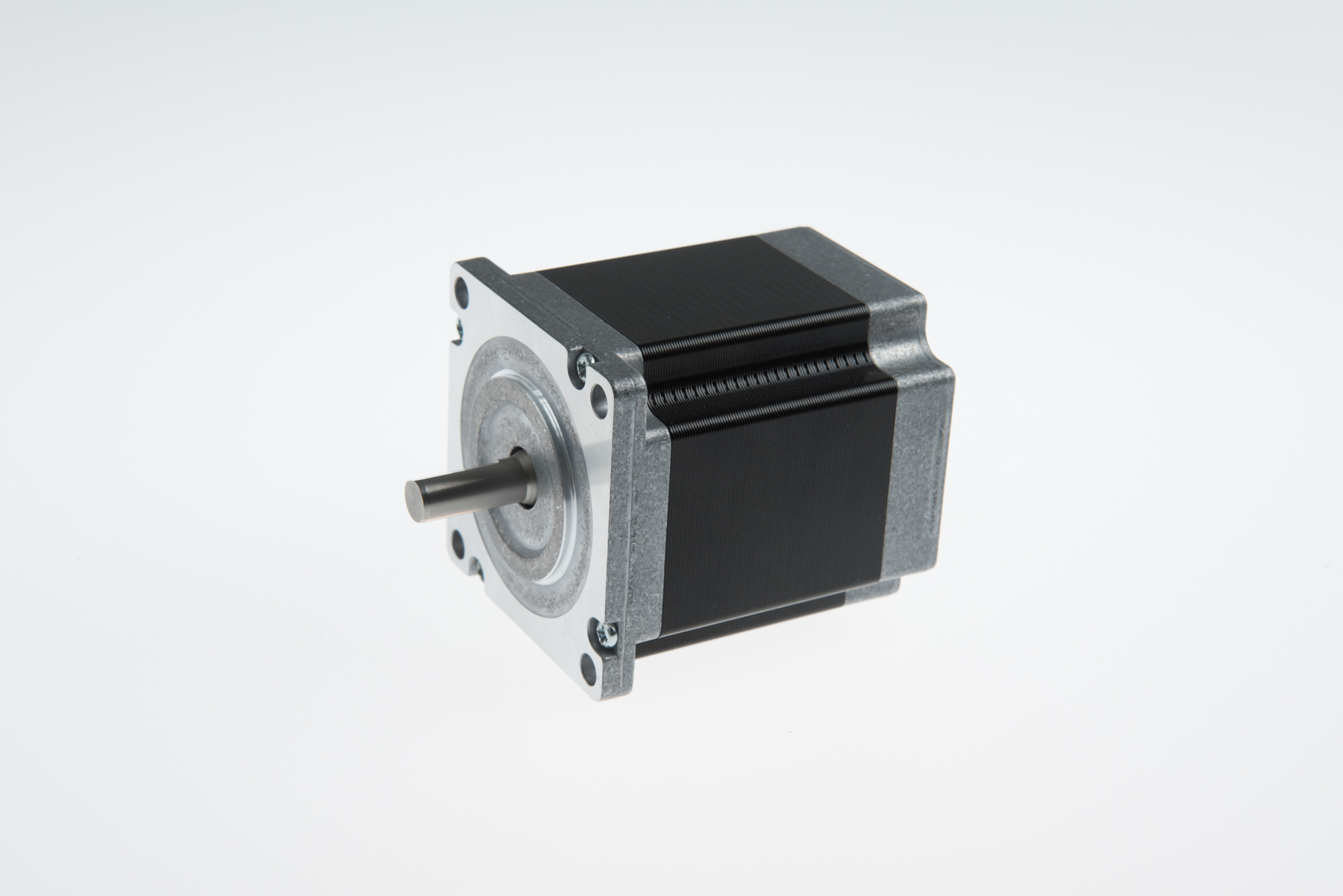

2 phase Nema24 black sliver wholesale wire stepper motor for office
automation
Specification:
NEMA 8,11,14,17,23,24, 34, 42, 52 Stepper Motor & Driver with CE,
RoHS, OEM
2 phase stepper motor, stepping motor, step motor
Professional manfacuturer for stepper motor, have NEMA8, NEMA11.
NEMA14, NEMA17, NEMA23, NEMA34, NEMA42.
1.8 degree, 0.9 degree. Single shaft and double shaft
Specification:
| Model | PST60H269-4L40 |
| Holding Torque | 2.1 N.m |
| Related Current A/Phase | 4 |
| Resistance Ω/Phase | 0.6 |
| Inductance mH/Phase | 1.9 |
| Inertia g.cm2 | 490 |
| Weight kg | 1 |
| Length mm | 68 |
| Connection | L |
Figure Dimensions (Unit=mm)
Please note the outline shows a dual-shaft motor.
The single shaft motor does not have the blue part shaft and the *
mark hole demensions.
The aboved speed/torque curve is based on prostepper's test
conditions. When the driving conditions change, the dynamic torque
changes too.
The related current indicated in the specification is an effective
value, please adjust the driver's current below the ralted current.
If you have motor pictures or drawings to show us, or you have
detailed specs like voltage, speed, torque, motor size, working
mode of the motor, needed lifetime and noise level etc, please do
not hesitate to let us know, then we can recommend suitable motor
per your request accordingly.
After confirmed the needed motor specs, we will quote and provide a
proforma invoice for samples, once we get the payment, we will get
a PASS from our account department to proceed samples accordingly.
Applications
Use for robots stepper motor, electric automatic equipment stepping
motor, medical instrument stepping motor, advertisement instrument
stepper motor, lighting& audio equipment stepper motor, printer
stepper motor, textile machinery stepper motor, CNC router stepper
motor
The quality control of hybrid stepper motor in the all process
Raw material inspection
Inspecting according to the standard of testing raw material or the
drawing
Monitoring and measurement in production process
Self checking-tested by QC-Batches production
Final checking and make experiment
All products should be through testing by the professional
equipment
Advantage of our stepper motor
1. For Prostepper, the customer is not only a buyer, but also a
long-term business partner. We work not only to meet their
expectations, but also to exceed them through continuous cycles of
learning.
2. We believe it is the key to a successful business relationship
that understanding our customer's goals, delivering what our
customers need and when they need it.
3. To demonstrate our commitment to all our customers, Prostepper
has adopted "Bringing out the Best in Motion" as our official
slogan, which means our ultimate goal is to become one of the
world's top level companies in the industry of precision stepper
motor and motion control system.
4. The pursuit of excellence encourages all Prostepper employees to
forge ahead into improving our business processes and increasing
our management efficiency.
5. We have no doubt that our hybrid stepper motor enable us to
maintain strong presence in the competitive market.
6. Now, let us help you find the right solution for your stepper
motor and motion control systems.
Can you provide us the following information ?
There are serveral important items: size, length of stepper motor,
holding torque, voltage, current etc.After confirm some them and
told us, we can send you the suitable one.
You can send us the model you are using, we can hep you find out
the most suitable one.
What we can do for you ?
We are honored to offer you samples for quality check.
One-year warranty and lifelong repair.
Prostepper also provide OEM and ODM for a lot of BRAND-NAME
companies.
Welcome to ask the problem about stepper motor , we hope to provide
you best service.
