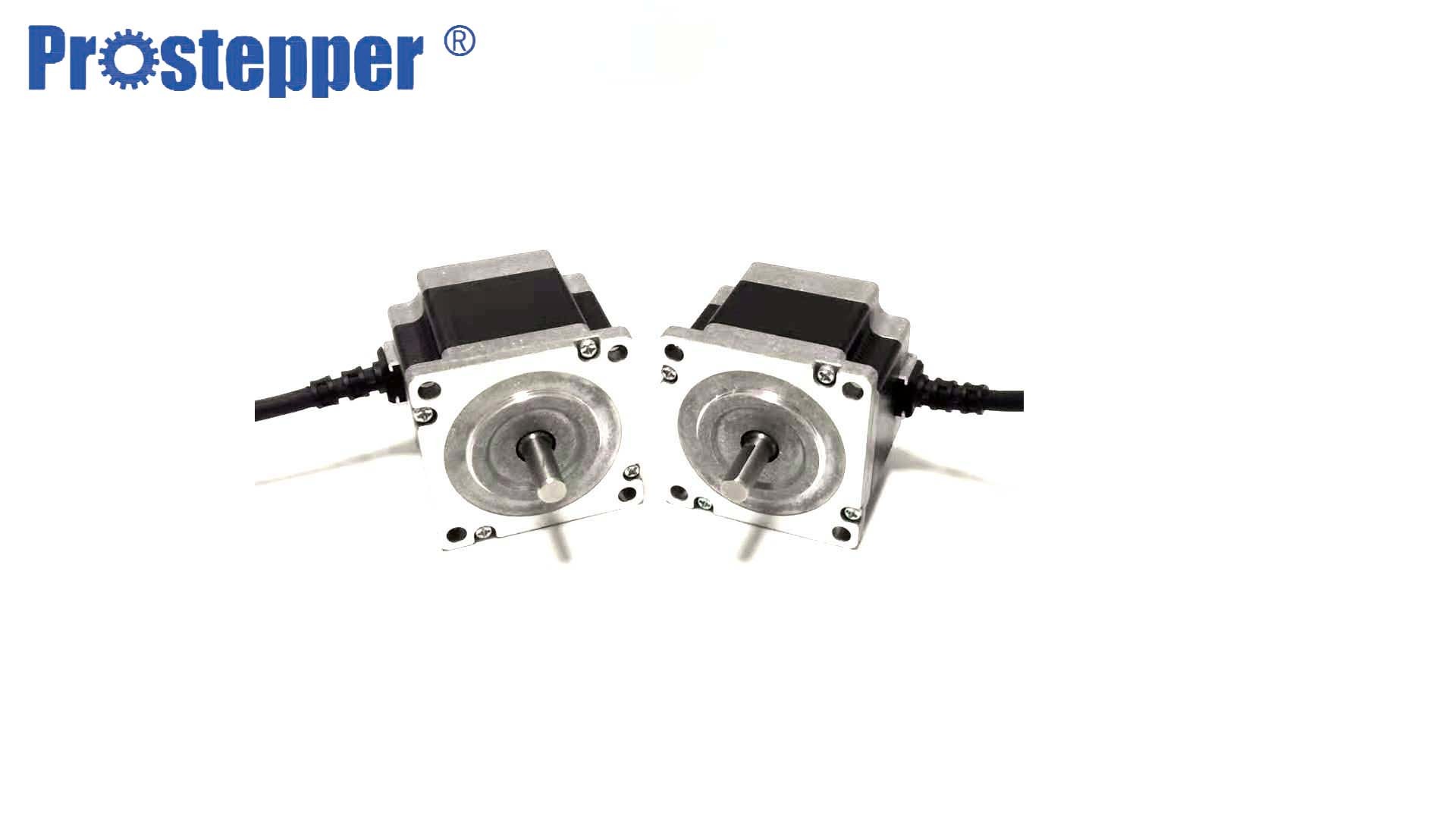

Nema 17 Cable Stepper Motor 1.8 Degree Two Phase Hybrid Stepper Motor

What is stepper motor?

• Stepper motor is an actuator transforming electric pulse into angular displacement. Popularly, when receiving a pulse signal, the stepper motor will rotate a fixed angle (namely ''stepping angle'') according to the direction set for the stepper motor. The angular displacement volume can be controlled by controlling the pulse number to achieve the purpose of positioning accurately. In the meantime, the rotational velocity and acceleration of motor can be controlled by controlling the pulse frequency to achieve the purpose of speed control.

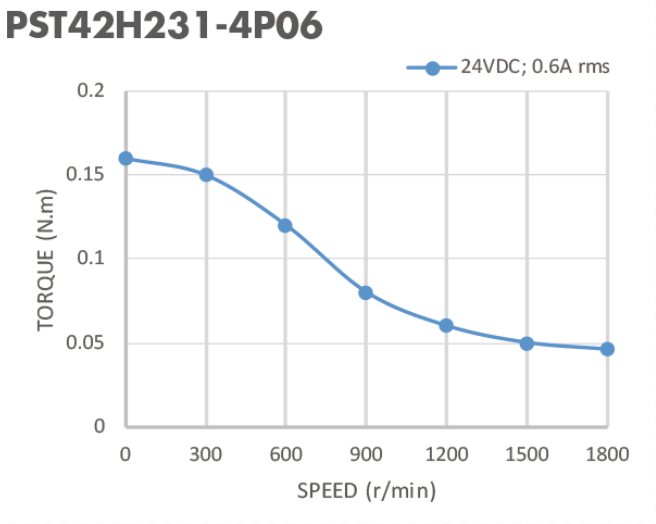

Specifications

Quality control process:

• Incoming inspection: The inspection shall be conducted according to the Requirements of the Incoming Inspection Specification or the product drawing
• Monitoring and measurement of production process (self-inspection - inspection - batch production)
• Final inspection and test
• All inspectors must be trained and then put on duty
• . Nonconforming products shall be executed in accordance with Nonconforming Product Control Procedures
• Raw material inspection
• Inspecting according to the standard of testing raw material or the drawing
• Monitoring and measurement in production process
• Self checking-tested by QC-Batches production
• Final checking and make experiment
• All products should be through testing by the professional equipment

Product description of hybrid stepper motor

1. The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.
2. In the case of the a stepping motor lock(the motor winding is energized,there is no external electric pulse command),the stepping motor can still maintain a certain torque output.
3. Online testing of technical parameters to ensure the consistency of data product parameters
4. The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness
5. Stepper motors are economical, accurate, and easy to control, and they can operate reliably in a variety of environments (depending on the level of protection IP chosen) preferably in machines with additional enclosures or in clean environments
6. Mechanical size 100% meet the requirements, to ensure that there is no greater error in the use process

Operation of Stepper Motor:

Stepper motors operate differently from DC brush motors, which rotate when voltage is applied to their terminals. Stepper motors, on the other hand, effectively have multiple toothed electromagnets arranged around a central gear-shaped piece of iron. The electromagnets are energized by an external control circuit, for example, a microcontroller.

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Prostepper motor has a strong, much experience, pragmatic and innovative production team. Based on high-quality products, we adhere to the customer oriented service concept.

Creat the best cost effective solution and adhere to the “ People-orientedintroduction optimization, the purpose of “ Stable quality and moving customers” is to serve new and old customers.

Welcome all the friends from all walks of life to visit, guide and negotiate business.
