NEMA11 1.8 degree 2 phase connector type 28mm black sliver bipolar stepper motor for Medical system

Product description of 2 phase hybrid Stepping Motor Nema11 stepper motor

1. Accurate position Control
The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.
2. Automatic machine operation, stable automatic work, high processing efficiency.
Mechanical size 100% meet the requirements, to ensure that there is no greater error in the use process
3. Forward/Reverse Rotation,Pause and Hold
The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.
In the case of the a stepping motor lock(the motor winding is energized,there is no external electric pulse command),the stepping motor can still maintain a certain torque output.
4.The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness.

Specifications

General Specifications Item Specifications

• Step Angle Accuracy ±5%
• Resistance Accuracy ±10%
• Inductance Accuracy ±20%
• Temperature Rise 80℃ Max
• Ambient Temperature -20℃ ~ +50℃
• Insulation Resistance 100MΩ Min.500V DC
• Dielectric Strength 500V AC 1 minute

Outline(Unit:mm)

Speed/Torque Characteristics(Reference Value)

Advantage of Product

• Prostepper motor use of a unique stator thechnology to ensure that the motor stator teeth grinding and smooth high accuracy of the hole, the work of the process of speed stability is not lose step
• Prostepper motorcoil is made of 100% pure copper enameled wire , advanced winding threading process, copper wire is evenly arranged, good overall motor stability , the long time does not appear deformation and noise and so on.
• High quality motor steel, the load on the shaft can produce high torque the inertia ratio, and can eliminate, the system error due to the use of reduction gears

• Note :

• The Nema17 5.6kgcm Stepper motor dimensions and weight may have ±2% error.

• Resonances can occur because of improper instalment.
• Not easy to operate at extremely high speeds.
• The cable comes with Motor has connector from one end to connect it to the motor while another end of cable is open for soldering

Quality assurance:

1. Every Production process has a special person person to test to ensure quality
2. Have professional engineers to check the quality
3. All products have passed CE, ROHS and ISO9001 Certificate.


FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.

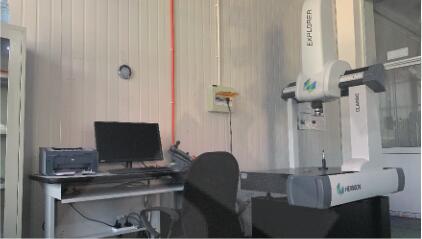

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .
