nema 34 86mm Stepping Motor 6A 1.8 degree Brake Stepper Motor With Encoder For packaging machine

• Product description of 1.8 degree brake stepper motor

• Forward/Reverse Rotation,Pause and Hold
  The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.
  In the case of the a stepping motor lock(the motor winding is energized,there is no external electric pulse command),the stepping motor can still maintain a certain torque output.

• The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness

• Online testing of technical parameters to ensure the consistency of data product parameters

• Accurate position Control
  The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

• Speed/Torque Characteristics(Reference Value)

High Torque

High torque is mainly attributed to many factors including rare earth magnets, optimized rotors, Stators with maximum winding fill and laminatins, all of which are combined together to realize maximum torque.

prostepper’ high torque stepper motors provide 15% to 25% more torque across the entire speed than conventional motors.The increased torque is a result of higher motor efficiency, and is available without increasing the drive voltage or current.

• ---

• Specifications

Encoder Specifications Brake Specifications

• Stepping Accuracy: ± 5%
• Resistance Accuracy: ± 10%
• Inductance Accuracy: ± 20%
• Temperature Rise: 80°C Max.
• Ambient Temperature: -20°C ... +50°C
• Insulation Resistance: 100MOhm min. 500V DC
• Withstand: 500V AC, 1 Minute

• Why choose stepper motor
• While these applications are the most common, they’re a fraction of what stepper motors can be used for. Generally speaking, any application that requires highly accurate positioning, speed control, and low speed torque can benefit from the use of stepper motors.
• While servo motors have their place in industry as well as numerous advantages of their own, stepper motors are an ideal solution in many applications.
• Stepper motors are a robust motion control technology and can be found inside of many common machines and equipment. To learn more, browse stepper motors at Prostepper from the world’s leading suppliers.

• ---

  Primary Competitive Advantages:

· Green Product

· Military Specifications

· Packaging

· Price

· Product Features

· Product Performance

· Prompt Delivery

· Quality Approvals

· Service

· Small Orders Accepted

· Brand-name Parts

· Origin

· Experienced Staff

• Note

  The winding on this article is a 4 Wire Bipolar.

  0.9° and 1.8° Hybrid Stepper Motors

  1.8° Step Angle,The motors are directly compatible with the stepper motor drive boards and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.,Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.

• ---

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .

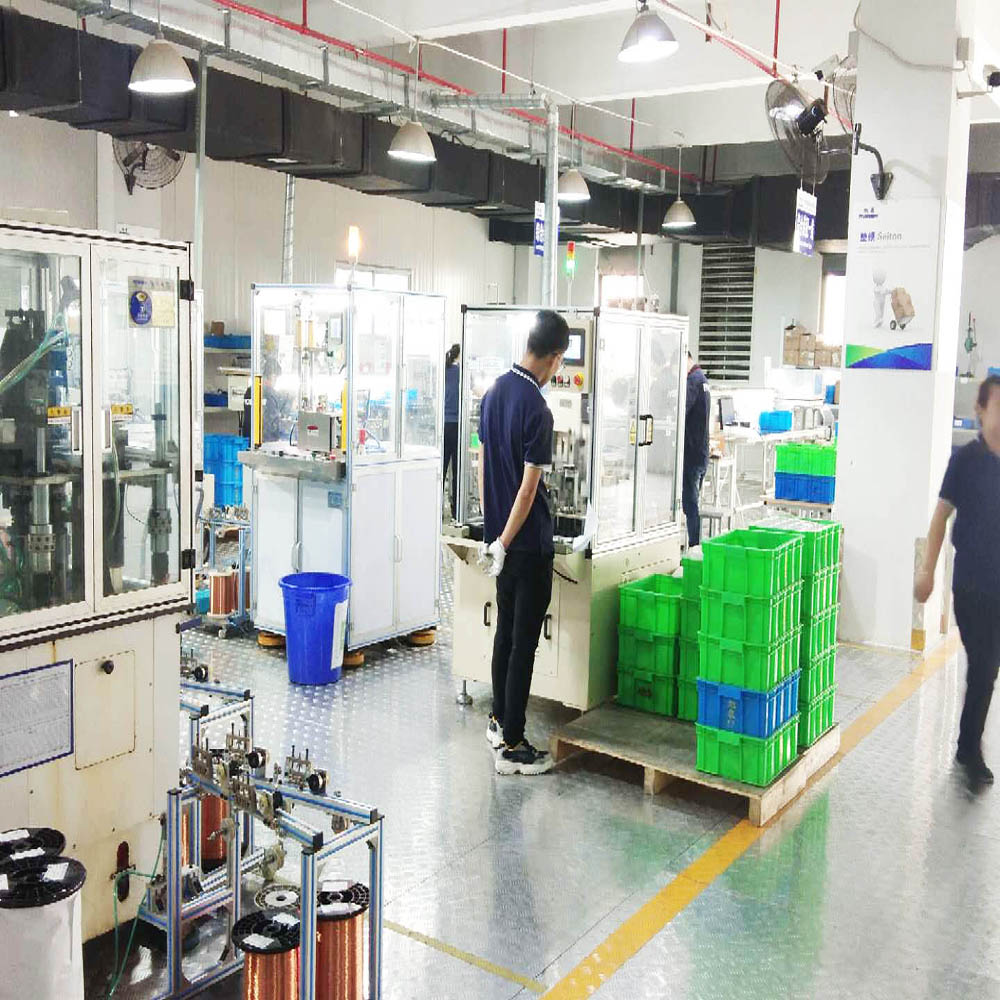

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Prostepper motor has a strong, much experience, pragmatic and innovative production team. Based on high-quality products, we adhere to the customer oriented service concept.

Creat the best cost effective solution and adhere to the “ People-orientedintroduction optimization, the purpose of “ Stable quality and moving customers” is to serve new and old customers.

Welcome all the friends from all walks of life to visit, guide and negotiate business.
