NEMA34 86*120mm Stepping Motor 8.2N.m Brake Stepper Motor With Encoder for plotter

• Product description of 1.8 degree brake stepper motor

• Accurate position Control

  The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

• Automatic machine operation, stable automatic work, high processing efficiency.

  Mechanical size 100% meet the requirements, to ensure that there is no greater error in the use process

• Online testing of technical parameters to ensure the consistency of data product parameters

• Stepper motors are economical, accurate, and easy to control, and they can operate reliably in a variety of environments (depending on the level of protection IP chosen) preferably in machines with additional enclosures or in clean environments




  Lower heat Low noise &smooth

  The design of prostepper' motor Improved manufacturing processes

  selected with new materials gets a lower enable all components of

  resistance value when compared with prostepper' stepper motors to

  motors of the same thickness and the achieve better matching precision

  same torque, this makes a greater degree and more stable internal

  of improvement for the thermal structures. This reduces vibration

  conductivity performance of the motor, and noise effectively when the

  thus greatly reduces the temperature motor operates, which makes

  rise of the motor. prostepper' stepper motors stand

  out by providing quieter and

  smoother operation.

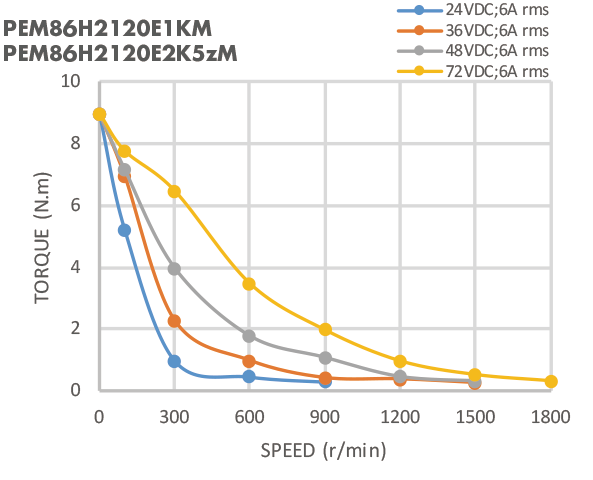

• Speed/Torque Characteristics(Reference Value)
•

• Specifications

Encoder Specifications Brake Specifications

• Stepping Accuracy: ± 5%
• Resistance Accuracy: ± 10%
• Inductance Accuracy: ± 20%
• Temperature Rise: 80°C Max.
• Ambient Temperature: -20°C ... +50°C
• Insulation Resistance: 100MOhm min. 500V DC
• Withstand: 500V AC, 1 Minute

• Why choose stepper motor
• While these applications are the most common, they’re a fraction of what stepper motors can be used for. Generally speaking, any application that requires highly accurate positioning, speed control, and low speed torque can benefit from the use of stepper motors.
• While servo motors have their place in industry as well as numerous advantages of their own, stepper motors are an ideal solution in many applications.
• Stepper motors are a robust motion control technology and can be found inside of many common machines and equipment. To learn more, browse stepper motors at Prostepper from the world’s leading suppliers.

• ---

  Primary Competitive Advantages:

· Green Product

· Military Specifications

· Packaging

· Price

· Product Features

· Product Performance

· Prompt Delivery

· Quality Approvals

· Service

· Small Orders Accepted

· Brand-name Parts

· Origin

· Experienced Staff

• Note

  The winding on this article is a 4 Wire Bipolar.

  0.9° and 1.8° Hybrid Stepper Motors

  1.8° Step Angle,The motors are directly compatible with the stepper motor drive boards and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.,Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.

• ---

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Prostepper motor has a strong, much experience, pragmatic and innovative production team. Based on high-quality products, we adhere to the customer oriented service concept.

Creat the best cost effective solution and adhere to the “ People-orientedintroduction optimization, the purpose of “ Stable quality and moving customers” is to serve new and old customers.
