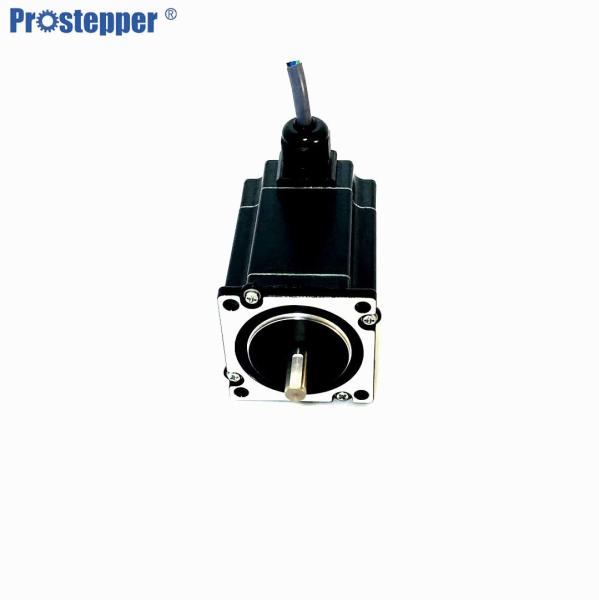

57mm*55mm 2-Phase Waterproof Type NEMA23 Stepper Motor with encoder

The difference between waterproof motor IP65 and IP67

Both IP65 and IP67 are completely dust-proof, but the water-proof grade is different:

IP65 prevents the injection of water from immersing, that is, prevent the water ejected from the nozzle from all directions from invading the electrical appliances and causing damage;

IP67 prevents water immersion during flooding, that is, the electric appliance is immersed in water for a certain time or the water pressure is below a certain standard, which can ensure no damage caused by flooding.

Product description of Waterproof type motor Forward/Reverse Rotation,Pause and Hold

• The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.
• Accurate position Control
• The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.
• The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness
• Online testing of technical parameters to ensure the consistency of data product parameters
• Strictly control the production of parts to improve the quality of parts
• Online testing of technical parameters to ensure the consistency of data product parameters

Specifications

IP Rating :IP65

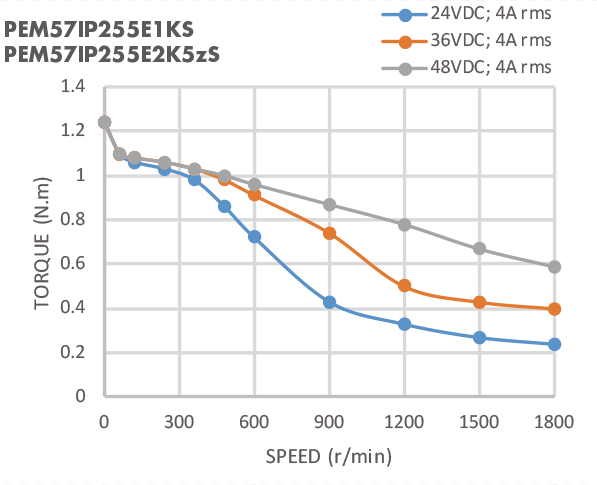

Speed/Torque Characteristics(Reference Value)

0.9° and 1.8° Hybrid Stepper Motors

1.8° Step Angle,The motors are directly compatible with the stepper motor drive boards and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.,Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Prostepper motor has a strong, much experience, pragmatic and innovative production team. Based on high-quality products, we adhere to the customer oriented service concept.

Creat the best cost effective solution and adhere to the “ People-orientedintroduction optimization, the purpose of “ Stable quality and moving customers” is to serve new and old customers.

Welcome all the friends from all walks of life to visit, guide and negotiate business.
