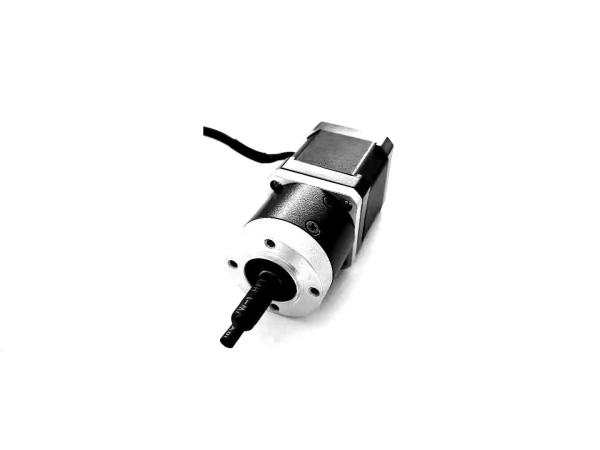

42mm 1.8 Degree Gear Box Type Stepping Motor Nema17 Hybrid Stepper Motor

Description of Gear Box Stepper Motor

1. High reliability, easy maintenance.Motor rotor structure accurate, no loss of step.Rotor special material, not stuck machine

2. Strictly control the production of parts to improve the quality of parts.

3. Accurate Speed Control

The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.

5. Accurate position Control

The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

1. Stepping Accuracy: ± 5%
2. Resistance Accuracy: ± 10%
3. Inductance Accuracy: ± 20%
4. Temperature Rise: 80°C Max.
5. Ambient Temperature: -20°C ... +50°C
6. Insulation Resistance: 100MOhm min. 500V DC
7. Withstand: 500V AC, 1 Minute

Gear Box Stepper Motor's specifications

The Advantages of Stepper Motors

Not every application will benefit from a stepper motor, but in the right environment stepper motors can be ideal. First, stepper motors have full torque at standstill, and the rotation angle of the motor is proportional to the input pulse. Essentially, stepper motors offer excellent speed control, precise positioning, and repeatability of movement.

Additionally, stepper motors are highly reliable since there are no contact brushes in the motor. This minimizes mechanical failure and maximizes the operation lifespan of the motor. These motors can be used in a wide range of environments, as many different rotational speeds can be achieved because the speed is proportional to the frequency of pulse inputs.

0.9° and 1.8° Hybrid Stepper Motors

1.8° Step Angle,The motors are directly compatible with the stepper motor drive boards and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.,Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.,

Applications include:

Robotics
Paper feed mechanisms
Teletype printers
Small machine tools
Computer peripherals
X-Y plotters

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Prostepper motor has a strong, much experience, pragmatic and innovative production team. Based on high-quality products, we adhere to the customer oriented service concept.

Creat the best cost effective solution and adhere to the “ People-orientedintroduction optimization, the purpose of “ Stable quality and moving customers” is to serve new and old customers.

Welcome all the friends from all walks of life to visit, guide and negotiate business.
