35mm 2 phase 1.8 degree hybrid NEMA14 encoder stepper motor for
labotatory instrument
Product description
1. All motors are made of pure copper with corrosion resistance,
good themal conductivity, strong electrical conductivity, stable
torque, low temperature and durability for more than 5 years.
2. Feature of basic type Hybrid stepper motor: Mechanical and performance parameters comparison standard, easy to
use, meet most operational requirements.
3. We accpet OEM and ODM orders.
4. Before sign an official contract with our customer, we will help
to analyze and provide professional solution based on customer
project information and come out with optimum soultion.
5. One-year warranty spare parts.
6.Buyer can dispatch technician to our factory for free training
before delivery.
Advantages of Stepper Motor:
- The rotation angle of the motor is proportional to the input pulse.
- The motor has full torque at standstill.
- Precise positioning and repeatability of movement since good
stepper motors have an accuracy of 3 – 5% of a step and this error
is noncumulative from one step to the next.
- Excellent response to starting, stopping, and reversing.
- Very reliable since there are no contact brushes in the motor.
Therefore the life of the motor is simply dependant on the life of
the bearing.
- The motor’s response to digital input pulses provides open-loop
control, making the motor simpler and less costly to control.
- It is possible to achieve very low-speed synchronous rotation with
a load that is directly coupled to the shaft.
- A wide range of rotational speeds can be realized as the speed is
proportional to the frequency of the input pulses.
Operation of Stepper Motor:
Stepper motors operate differently from DC brush motors, which
rotate when voltage is applied to their terminals. Stepper motors,
on the other hand, effectively have multiple toothed electromagnets
arranged around a central gear-shaped piece of iron. The
electromagnets are energized by an external control circuit, for
example, a microcontroller.

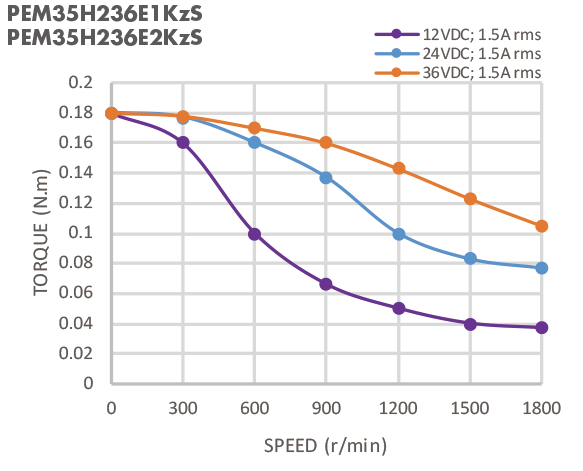

encoder stepper motor of Specifications
| Holding Torque | 0.18N.m |
| Related Current | 1.5A/Phase |
| Resistance | 2.1Ω/Phase |
| Inductance | 2.1MH/Phase |
| Inertia | 20g.cm² |
| Index | √ |
| Output | Differental |
| Encoder Resolution | 2000CPR |
Applications of Stepper Motors
Stepper motors are diverse in their uses, but some of the most
common include:
- 3D printing equipment
- Textile machines
- Printing presses
- Gaming machines
- Medical imaging machinery
- Small robotics
- CNC milling machines
- Welding equipment
Quality assurance:
- 1. All stepper motors have CE and RoHS certification
- 2. All motors are tested by a toasting machine for 72 hours
- 3. All the motors will be shipped after testing
Packing Details : Packing uses shockproof foam, different sizes and
different models have special cartons, Delivery Details : The
products on the shelves are all in stock, sent in about 3 days,
received in 5-10 days, if customized and large orders, 5-20 days
delivery, 5-30 days to arrive!
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity and Customized.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the
cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
