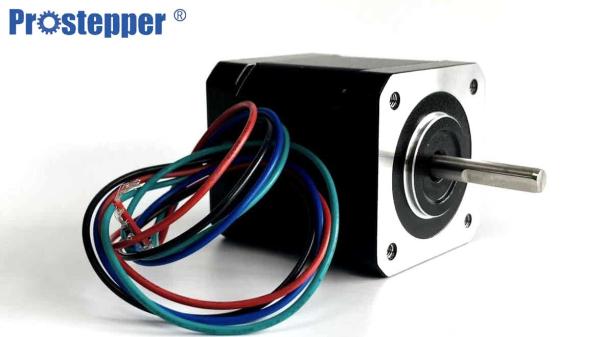

Nema 17 Hybrid Stepper Motor 42mm 2 Phase Hybrid Stepper Motor 1.8 Degree

• Specifications
• Shaft Dia= 5mm
• Step Angle: 1.8
• Phase Current: 0.6A
• Phase Resistance: 8Ohm
• Phase Inductance: 15.2mH
• Holding Torque: 0.25N.cm
• Rotor Inertia: 35g.cm32;
• Wire: 4(Blue, green, black, red)
• Max. Temperature Rise: 80"C (rated current, 2 phase on)11. Operating Temperature: -20*C-+70"C

• Product description of hybrid stepper motor
• Online testing of technical parameters to ensure the consistency of data product parameters
• The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness

• Electromagnetic furnace optimization design, lift torque, reduce temperature rise, so that the motor running smoothly

• Accurate position Control

  The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

• Mechanical size 100% meet the requirements, to ensure that there is no greater error in the use process

Lower Heat Low Noise & Smooth

The design of prostepper' motor Improved manufacturing processes

selected with new materials gets a lower enable all components of

resistance value when compared with prostepper' stepper motors to

motors of the same thickness and the achieve better matching precision

same torque, this makes a greater degree and more stable internal

of improvement for the thermal structures. This reduces vibration

conductivity performance of the motor, and noise effectively when the

thus greatly reduces the temperature motor operates, which makes

rise of the motor. prostepper' stepper motors stand

out by providing quieter and

smoother operation.

• Primary Competitive Advantages:

• Green Product
• Military Specifications
• Packaging
• Price
• Product Features
• Product Performance
• Prompt Delivery
• Quality Approvals
• Service
• Small Orders Accepted
• Brand-name Parts
• Origin
• Experienced Staff

• Quality assurance:

1. All stepper motors have CE and RoHS certification
2. All motors are tested by a toasting machine for 72 hours
3. All the motors will be shipped after testing

• Stepper Motor Control by Varying Clock Pulses

  Stepper motor control circuit is a simple and low-cost circuit, mainly used in low power applications. The circuit is shown in the figure,




  A stepper motor is an electromechanical device it converts electrical power into mechanical power. Also, it is a brushless, synchronous electric motor that can divide a full rotation into an expansive number of steps. The motor’s position can be controlled accurately without any feedback mechanism, as long as the motor is carefully sized to the application. Stepper motors are similar to switched reluctance motors.




  The stepper motor uses the theory of operation for magnets to make the motor shaft turn a precise distance when a pulse of electricity is provided. The stator has eight poles, and the rotor has six poles. The rotor will require 24 pulses of electricity to move the 24 steps to make one complete revolution. Another way to say this is that the rotor will move precisely 15° for each pulse of electricity that the motor receives.

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Prostepper motor has a strong, much experience, pragmatic and innovative production team. Based on high-quality products, we adhere to the customer oriented service concept.

Creat the best cost effective solution and adhere to the “ People-orientedintroduction optimization, the purpose of “ Stable quality and moving customers” is to serve new and old customers.

Welcome all the friends from all walks of life to visit, guide and negotiate business.
