1.8 degree 57mm two phase black hybrid stepper motor for Packaging machine

57mm series stepper motor is our most popular selling products, the output is very big, most customer like to choose prostepper brand.

We have motor size: NEMA8, NEMA11. NEMA14, NEMA17, NEMA23, NEMA34
Step angle: 1.8 degree, 0.9 degree or 1.2 degree.

The kinds of shaft is divided into Single shaft and double shaft,

So you can choose according to your different requirements

Prostepper brand motor always have own calling system as below:

·

The product detailed specification of 2 phase 57mm hybrid stepper motor can be refered as below:

This out line shows a dual-shaft motor. The single-shaft motor does not have the blue part shaft and the * mark hole demensions.

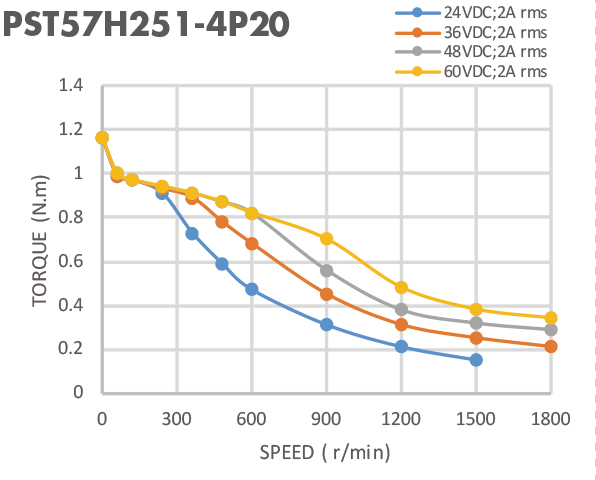

Speed/Torque Characteristics (Reference Value)

How does a stepper motor work?

Every revolution of the stepper motor is divided into a discrete number of steps, in many cases 200 steps, and the motor must be sent a separate pulse for each step. The stepper motor can only take one step at a time and each step is the same size.

Since each pulse causes the motor to rotate a precise angle, typically 1.8°, the motor's position can be controlled without any feedback mechanism. As the digital pulses increase in frequency, the step movement changes into continuous rotation, with the speed of rotation directly proportional to the frequency of the pulses.

Prostepper's stepper motors are used every day in both industrial and commercial applications because of their low cost, high reliability, high torque at low speeds and a simple, rugged construction that operates in almost any environment.

Our company takes great importance of each parts of the stepper motors for all the process:

The applications of our stepper motors

· 3D Printing

· Flight Control Systems
Agricultural Automation

Material Handling – Conveyor, Diverter, Robotics, AGV

· Metalworking – EDM, Waterjet, Laser, Wire Feed Welding

· Food and Beverage – Filling, Valve, Fast Food Automation

· Inspection, Vision & Test – CMM, Optical Comparator, Vision

· Packaging – Converting, Wrapping & Strapping, Web guide, Slitter, Palletizing, Pillow

· Positioning Systems – Linear Actuator, Linear Stage, Multi-axis stage, Rotary indexer

· Robotics - Pipe inspection, Submersible, Cleaning

· Textile – Loom, Shuttle, Cutting systems, Shear, Embroidery

· Woodworking Automation – Panel saw, Router, Gauge

· Pump – Metering, Down hole, Seal-less

· Paint Spray

Our Service

Pre-Sales Service

• Provide details about the production procedure of stepper motor

• Assign engineers for installation and testing stepper motor

Sales Service

• Customized solution designs of hybrid stepper motor

• Product rendering and steel structure drawing of stepper motor

• Company successful stepper motor project examples and visits to our production and R&D base

After-Sales Service

• One-year quality warranty of stepper motor with lifelong maintenance.

• Free guarantee repair l): free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

• Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

• Spare parts: necessary spare parts are provided together with products to customers.

• Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

• Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.

• Site instruction service of installation is available.

Prostepper also provide OEM and ODM for a lot of BRAND-NAME companies.

We accept customized logo and customized packing

We warmly welcome Endusers and Agents to make inquiry to us, Prostepper would like to establish a widely cooperation with our esteemed customers.

Thank you for choosing Prostepper! We have strongly self-confidence to be your reliable and long-term motor provider.

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Prostepper motor has a strong, much experience, pragmatic and innovative production team. Based on high-quality products, we adhere to the customer oriented service concept.

Creat the best cost effective solution and adhere to the “ People-orientedintroduction optimization, the purpose of “ Stable quality and moving customers” is to serve new and old customers.

Welcome all the friends from all walks of life to visit, guide and negotiate business.
