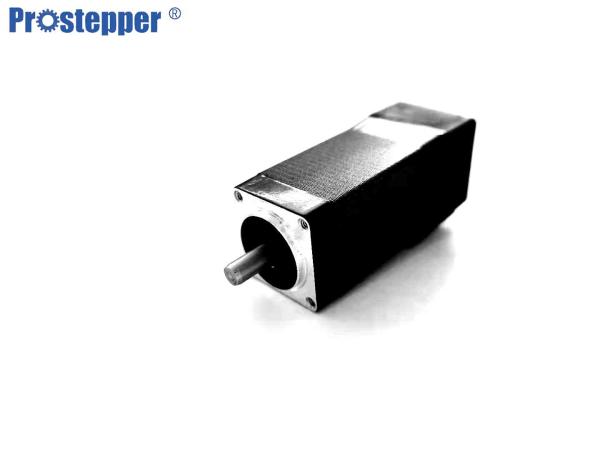

NEMA11 Encoder stepper motor 28mm hybrid 1.8 degree stepper motor

• Prostepper motor use of a unique stator the chnology to ensure that the motor stator teeth grinding and smooth high accuracy of the hole, the work of the process of speed stability is not lose step
• Prostepper motorcoil is made of 100% pure copper enameled wire , advanced winding threading process, copper wire is evenly arranged, good overall motor stability , the long time does not appear deformation and noise and so on.
• High quality motor steel, the load on the shaft can produce high torque the inertia ratio, and can eliminate, the system error due to the use of reduction gears

0.9° and 1.8° Hybrid Stepper Motors

1.8° Step Angle,The motors are directly compatible with the stepper motor drive boards and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.,Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.

Encoder stepper motor of Specifications

• · high precision
• · high torque
• · durable
• · medium size
• · Stepping Accuracy: ± 5%
• · Resistance Accuracy: ± 10%
• · Inductance Accuracy: ± 20%
• · Temperature Rise: 80°C Max.
• · Ambient Temperature: -20°C ... +50°C
• · Insulation Resistance: 100MOhm min. 500V DC
• · Withstand: 500V AC, 1 Minute

Product description of encoder stepper motor

1. High reliability, easy maintenance.Motor rotor structure accurate, no loss of step.Rotor special material, not stuck machine.

2. Longer Life

   Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

3. Strictly control the production of parts to improve the quality of parts

4. .Accurate Speed Control

   The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.

5. Accurate position Control

   The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

Encoder stepper motor Application

Computer controlled stepper motors are a type of motion-control positioning system. They are typically digitally controlled as part of an open loop system for use in holding or positioning applications.

In the field of lasers and optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems.

Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives, intelligent lighting, camera lenses, CNC machines and, more recently, in 3D printers.

CHANGZHOU PROSTEPPER CO.,LTD. is a manufacturer of stepping motors with well-equipped testing equipment and strong technical force. we have got ISO9001,ROHS and CE certificate, we are specializing in researching, developing and serve stepper motor in Changzhou,China. We supply the production of each type of stepper motor, such as hybrid stepper motor, Encoder type Hybrid Stepper motor, gear box type motor, we accept OEM and ODM orders. Our products are widely used in Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field. We have rich experience in the development of design experts and technical staff .

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Prostepper motor has a strong, much experience, pragmatic and innovative production team. Based on high-quality products, we adhere to the customer oriented service concept.

Creat the best cost effective solution and adhere to the “ People-orientedintroduction optimization, the purpose of “ Stable quality and moving customers” is to serve new and old customers.

Welcome all the friends from all walks of life to visit, guide and negotiate business.
