    3 Phase Hybrid Nema 23 Stepper Motor 1.2 Degree 1.8Nm 3.5A/Phase

    Ask Lasest Price
    Brand Name : Prostepper
    Model Number : PST57H380-3L35
    Certification : CE/ISO/ROHS
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 25000PCS/Month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

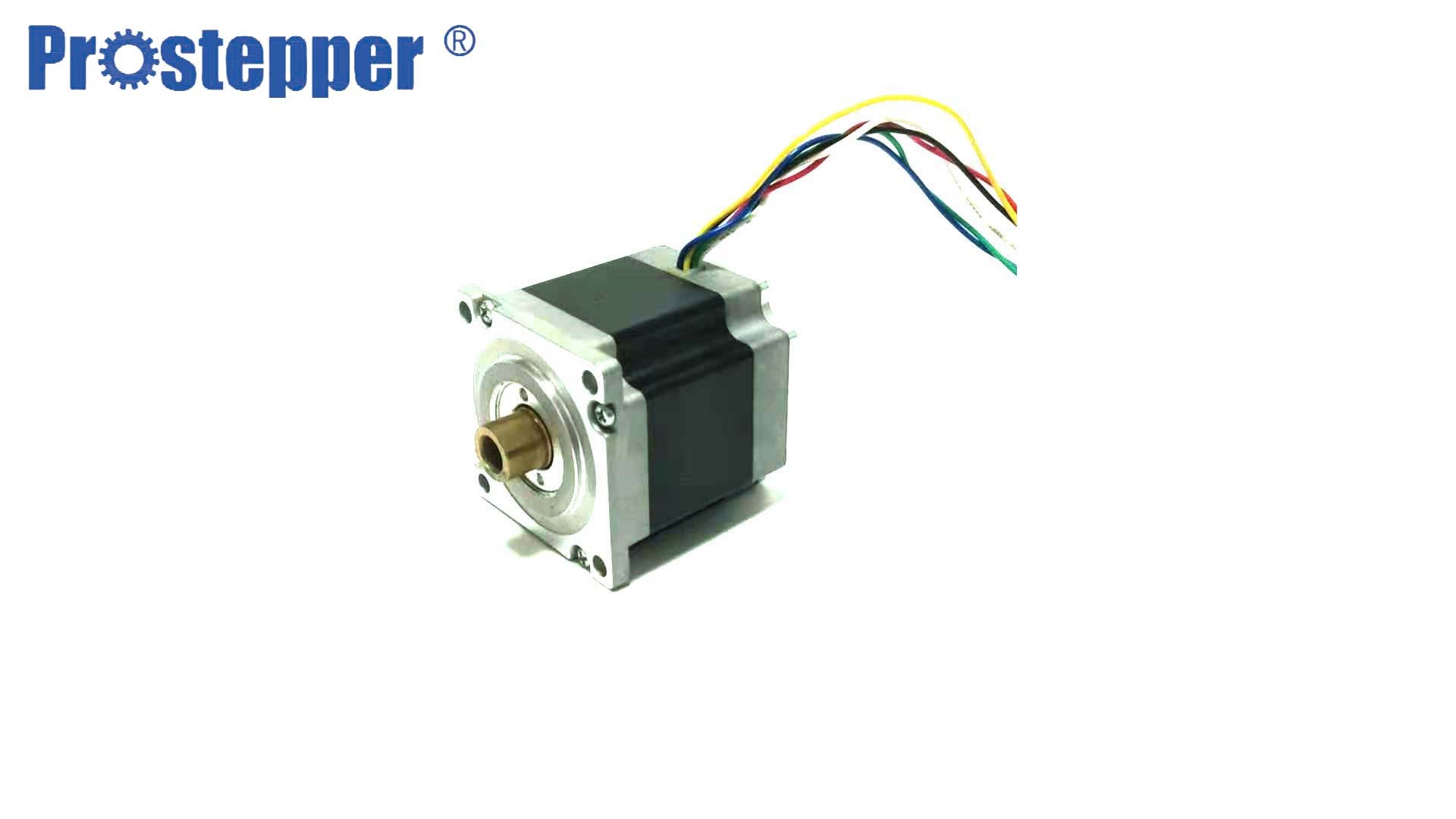

    3 Phase Hybrid Nema 23 Stepper Motor 1.2 Degree 1.8Nm 3.5A/Phase

    3 phase Nema23 1.2 degree 1.8Nm 3.5A/Phase PST57H380-3L35 hybrid stepper motor


    Prostepper Motor has been focusing on stepper motors for more than 20 years. we are committed to creating the smoothest, most accurate and most innovative stepper motors that can be used anywhere. Today, we have a wide range of standard and custom stepper motors, Brushless motor.


    Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
    Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.


    General Specification:


    SpecificationMotor Characteristics
    Insulation ClassClass B130°C
    Step Angle Accuracy±0.09°
    Withstand VoltageAC500V (one minute)
    Insulation Resistance100MQ MIN. 500VDC
    Temperature Rise80*C MAX
    Radial Play0.025mm Max. (Load450g)
    Axial Play0.075mm Max. (Load950g)
    Temperature-10~+50°C (Non Condensing)
    Operating EnvironmentHumidity85%RH MAX. (Non Condensing)
    MediumNo corrosive gas or dust. Not directly in contact with water, oil, etc.
    Storage EnvironmentTemperature0~+50°C (Non Condensing
    Humidity85%RH MAX. (Non Condensing)
    Life5000 Hours MIN.

    Radial Load&Axial Load

    Motor SizeShaft Diameter (mm)Radial Load (N)Axial Load (N)
    Distance from Mounting Surface (mm)
    5101520253035
    NEMA8415123
    NEMA 1155035255
    NEMA 1455035252010
    NEMA 1755035252015
    NEMA 2382701801301009020
    NEMA 248200135100825830
    NEMA 341462055048039034029026060

    Mode No:PST57H380-3L35

    Connection :L

    Holding Torque1N.m
    Related Current3.5 A/Phase
    Resistance1.8 Ω/Phase
    Inductance2 MH/Phase
    Inertia480 g.cm²
    Weight1.1 kg
    Length80.5 mm

    Speed/Torque Characterics(Reference Value)


    The speed/torque curve is based on Prostepper's test conditions. When the driving conditions change, the dynamic torque changes too.

    The rated current indicated in the specification is an effecitve value, please adjust the driver's current below the rated current.

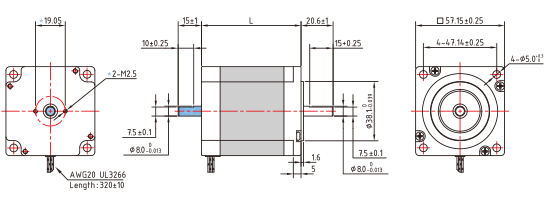

    Outline (Unit:mm)

    ModelL
    PST57H35555.mm
    PST57H38080.5mm


    3 Phase Hybrid Nema 23 Stepper Motor 1.2 Degree 1.8Nm 3.5A/Phase3 Phase Hybrid Nema 23 Stepper Motor 1.2 Degree 1.8Nm 3.5A/Phase3 Phase Hybrid Nema 23 Stepper Motor 1.2 Degree 1.8Nm 3.5A/Phase

    What is stepper motor

    Stepper motor is a control motor that provide precise position and speed control.

    Stepper motor can convert an electrical pulse signal into an angular and linear motion, no need for feedback device to sense position. Also, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency to achieve the purpose of speed regulation. The motor and drive constitutes a low cost control system that is simple to construct.


    Features of prosteppers’ stepping motor

    Accurate Position Control

    The angular displacement of the stepping motor can be precisely controlled by the number of electric pulses. Angle accuracy can be controlled within ±0.09゜without any feedback devices.

    Forward/Reverse Rotation, Pause and Hold

    The forward/reverse rotation of the stepper motor can be controlled by the input sequence of the controlled electric pulses.

    In case of a stepper motor lock (the motor winding is energized, there is no external electric pulse command), the stepper motor can still maintain a certain torgue output.

    Longer life

    Stepper motor is a mechanical structure, which does not need to be commutated by brush and Hall sensor, thus reducing the probability of failure and increasing the motor life. Stepping motor life usually determined by the life of the bearing.


    Application

    Stepper motors are diverse in their uses, but some of the most common include:
    * 3D printing equipment
    * Textile machines
    * Printing presses
    * Gaming machines
    * Medical imaging machinery
    * Small robotics
    * CNC milling machines
    * Welding equipment
