    Two Phase 0.16N.M Bipolar Automatic Stepper Motor 42mm AC500V

    Ask Lasest Price
    Brand Name : prostepper
    Model Number : PST42H231-4P12
    Certification : CE/ISO/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 250000pcs per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Two Phase 0.16N.M Bipolar Automatic Stepper Motor 42mm AC500V

    2 Phase 0.16N.M Bi-Polar PST42H231-4P12 Automatic Stepper Motor​

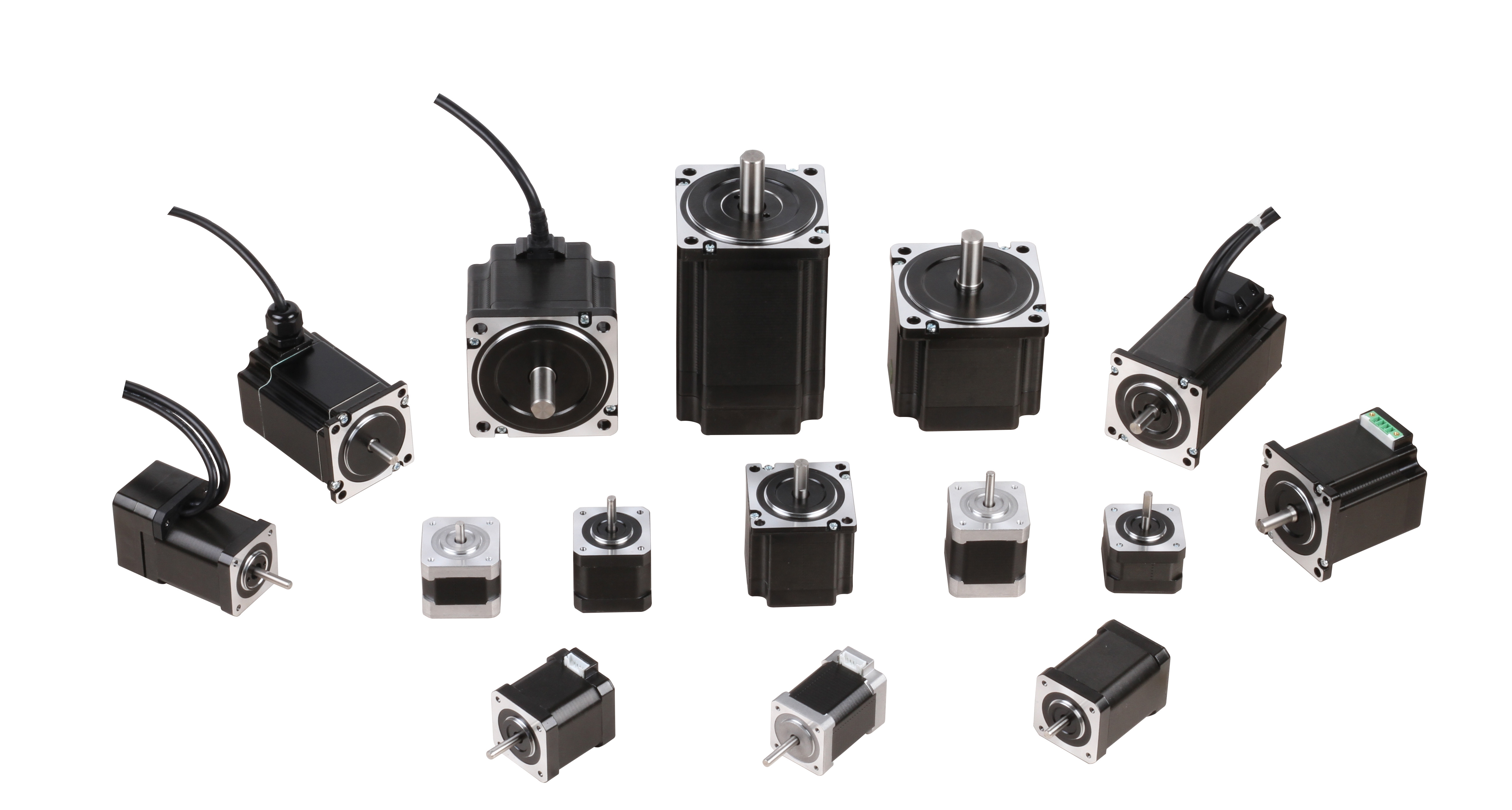

    We have made various type stepper motor for our customer, prostepper brand is very famous in the markets


    Our stepping motor can be used in house appliance,Robot, music fountain, industrial electronic automation equipment, medical equipment, advertising equipment, stage lighting equipment, printer, textile machinery, external applicable equipment of computer. Welcome to you visit our factory and negotiate business with us.



    General specifications


    SpecificationMotor Characteristics
    Insulation ClassClass B130°C
    Step Angle Accuracy±0.09°
    Withstand VoltageAC500V (one minute)
    Insulation Resistance100MQ MIN. 500VDC
    Temperature Rise80*C MAX
    Radial Play0.025mm Max. (Load450g)
    Axial Play0.075mm Max. (Load950g)
    Temperature-10~+50°C (Non Condensing)
    Operating EnvironmentHumidity85%RH MAX. (Non Condensing)
    MediumNo corrosive gas or dust. Not directly in contact with water, oil, etc.
    Storage EnvironmentTemperature0~+50°C (Non Condensing
    Humidity85%RH MAX. (Non Condensing)
    Life5000 Hours MIN.

    Radial Load&Axial Load

    Motor SizeShaft Diameter (mm)Radial Load (N)Axial Load (N)
    Distance from Mounting Surface (mm)
    5101520253035
    NEMA8415123
    NEMA 1155035255
    NEMA 1455035252010
    NEMA 1755035252015
    NEMA 2382701801301009020
    NEMA 248200135100825830
    NEMA 341462055048039034029026060


    The product detailed specification of 2 phase Nema17mm Bi-polar hybrid automatic stepper motor can be refered as below:


    42mm 2-Phase Standard Type NEMA17 Bi-Polar 1.8゜

    Mode NoPST42H231-4P06

    PST42H231-4P12


    PST42H235-4P06PST42H235-4P12
    Holding Torque0.16N.m0.16N.m0.25N.m0.25N.m
    Related Current0.6A/Phase1.2A/Phase0.6A/Phase1.2A/Phase
    Resistance6.6 Ω/Phase1.8Ω /Phase8Ω/Phase2.1Ω/Phase
    Inductance9.5MH/Phase2.4MH/Phase15.2MH/Phase3.9MH/Phase
    Inertia23g.cm223g.cm235g.cm235g.cm2
    Weight0.2kgs0.2kgs0.24kgs0.24kgs
    Length31mm31mm35mm35mm
    ConnectionPPPP
    Mode NoPST42H241-4P12

    PST42H241-4P20


    PST42H249-4P12PST42H249-4P20
    Holding Torque0.4N.m0.4N.m0.48N.m0.48N.m
    Related Current1.2A/Phase2A/Phase1.2A/Phase2A/Phase
    Resistance2.5 Ω/Phase1.05Ω /Phase3.1Ω/Phase1.35Ω/Phase
    Inductance5.5MH/Phase2MH/Phase8MH/Phase2.9MH/Phase
    Inertia54g.cm254g.cm277g.cm277g.cm2
    Weight0.3kgs0.3kgs0.36kgs0.36kgs
    Length41mm41mm49mm49mm
    ConnectionPPPP
    Mode NoPST42H261-4P12PST42H261-4P20
    Holding Torque0.72N.m0.72N.m
    Related Current1.2A/Phase2A/Phase
    Resistance2.5 Ω/Phase1.75Ω /Phase
    Inductance11MH/Phase4MH/Phase
    Inertia110g.cm2110g.cm2
    Weight0.5kgs0.5kgs
    Length61mm61mm
    ConnectionPP


    Speed/Torque Characteristics (Reference Value)


    Prostepper motor have high-quality professional technicians and advanced modern production equipment. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Their well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
