Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length

Changzhou Prostepper Co.,Ltd.
Contact Now
    Buy cheap Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length from wholesalers

    Buy cheap Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length from wholesalers
    • Buy cheap Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length from wholesalers
    • Buy cheap Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length from wholesalers
    • Buy cheap Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length from wholesalers
    • Buy cheap Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length from wholesalers

    Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length

    Ask Lasest Price
    Brand Name : prostepper
    Model Number : PST28H232-4P10
    Certification : CE/ISO/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 250000pcs per month
    Delivery Time : 10-15working days
    • Product Details
    • Company Profile

    Black sliver two Phase Nema 24 Stepper Motor 1A 0.08N.M 32mm Length

    2 Phase 1.8 degree Nema11 1A 0.08N.M 32mm length Bi Polar hybrid Stepper Motor

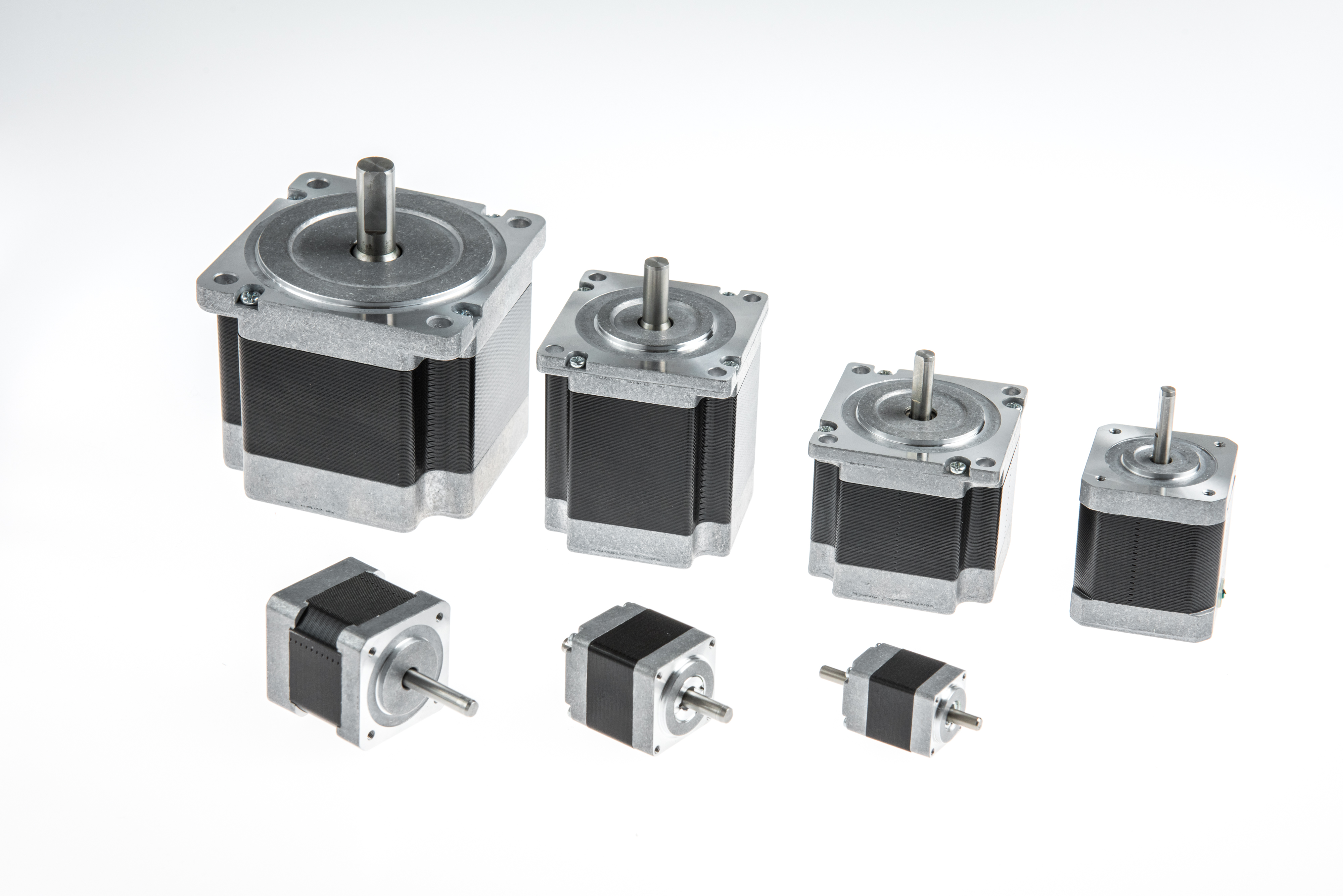

    Professional manufacturer for stepper motor, have NEMA8, NEMA11. NEMA14, NEMA17, NEMA23, NEMA34
    1.8 degree, 0.9 degree. Single shaft and double shaft


    Our Advantage and Ideals:

    PROSTEPPER registered capital is 12 million yuan, factory area is 12,000 square meters, and the production site is 10,000 square meters.It has all kinds of high precision automation machining more than 100 sets, yearly output is 1,500,000sets.
    PROSTEPPER is one of the strongest motor manufacturers in domestic of China.

    Quality Guarantee:
    Certificate: CE / ROHS / ISO9001
    Quality control: internal control

    Applications
    Use for robots stepper motor, electric automatic equipment stepping motor, medical instrument stepping motor, advertisement instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor, CNC router stepper motor,3D Printer stepper motor.



    General specifications


    SpecificationMotor Characteristics
    Insulation ClassClass B130°C
    Step Angle Accuracy±0.09°
    Withstand VoltageAC500V (one minute)
    Insulation Resistance100MQ MIN. 500VDC
    Temperature Rise80*C MAX
    Radial Play0.025mm Max. (Load450g)
    Axial Play0.075mm Max. (Load950g)
    Temperature-10~+50°C (Non Condensing)
    Operating EnvironmentHumidity85%RH MAX. (Non Condensing)
    MediumNo corrosive gas or dust. Not directly in contact with water, oil, etc.
    Storage EnvironmentTemperature0~+50°C (Non Condensing
    Humidity85%RH MAX. (Non Condensing)
    Life5000 Hours MIN.

    Radial Load&Axial Load

    Motor SizeShaft Diameter (mm)Radial Load (N)Axial Load (N)
    Distance from Mounting Surface (mm)
    5101520253035
    NEMA8415123
    NEMA 1155035255
    NEMA 1455035252010
    NEMA 1755035252015
    NEMA 2382701801301009020
    NEMA 248200135100825830
    NEMA 341462055048039034029026060

    2-Phase standard type NEMA11 Bi-Polar 1.8゜ stepping motor

    28mm 2-Phase Standard Type NEMA11 Bi-Polar stepper motor

    Connect type 28mm 2-phase NEMA11 Bi-polar stepper motor


    Mode NoPST28H232-4P05

    PST28H232-4P10


    PST28H245-4P10


    PST28H245-4P15
    Holding Torque0.08 N.m0.08 N.m0.12 N.m0.12 N.m
    Related Current0.5A/Phase1A/Phase1A/Phase1.5A/Phase
    Resistance20 Ω /Phase5.7 Ω /Phase8.5 Ω /Phase3Ω /Phase
    Inductance14MH/Phase3.5MH/Phase6.5MH/Phase3MH/Phase
    Inertia9 g.cm29 g.cm212 g.cm212 g.cm2
    Weight0.1kgs0.1kgs0.15kgs0.15kgs
    Length32mm32mm45mm45mm

    Connection


    PPPP

    Mode NoPST28H251-4P10PST28H251-4P15
    Holding Torque0.14 N.m0.14 N.m
    Related Current1A/Phase1.5A/Phase
    Resistance9.9Ω /Phase3.5Ω /Phase
    Inductance6.7MH/Phase3.1MH/Phase
    Inertia18 g.cm218 g.cm2
    Weight0.2kgs0.2kgs
    Length51mm51mm
    ConnectionPP

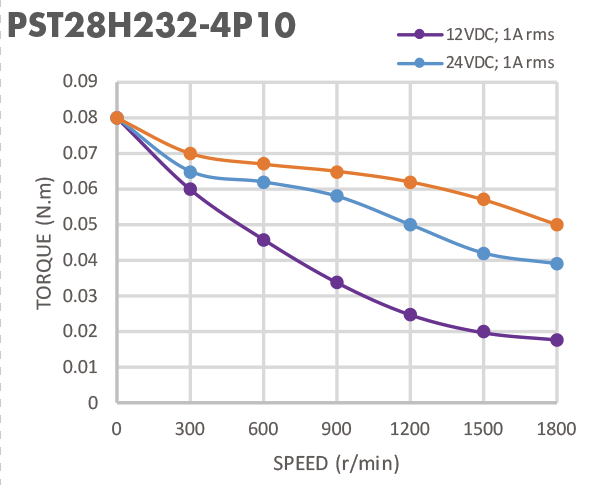

    Speed/Torque Characteristics (Reference Value)
