    Nema 11 Bi Polar Hybrid Stepping Motor 2 Phase 1A 0.14N.M

    Ask Lasest Price
    Brand Name : prostepper
    Model Number : PST28H251-4P15
    Certification : CE/ISO/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 250000pcs per month
    Delivery Time : 10-15working days
    • Product Details
    • Company Profile

    Nema 11 Bi Polar Hybrid Stepping Motor 2 Phase 1A 0.14N.M

    2 phase Nema11 1A 0.14N.M PST28H251-4P10 Bi Polar hybrid Stepping Motor


    What is stepper motor

    Stepper motor is a control motor that provide precise position and speed control.

    Stepper motor can convert an electrical pulse signal into an angular and linear motion, no need for feedback device to sense position. Also, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency to achieve the purpose of speed regulation. The motor and drive constitutes a low cost control system that is simple to construct.


    We can provide you NEMA 8,11,14,17,23,24, 34 Stepper Motor & Driver


    Certificate: CE / ROHS / ISO9001
    Quality control: internal control



    General specifications


    SpecificationMotor Characteristics
    Insulation ClassClass B130°C
    Step Angle Accuracy±0.09°
    Withstand VoltageAC500V (one minute)
    Insulation Resistance100MQ MIN. 500VDC
    Temperature Rise80*C MAX
    Radial Play0.025mm Max. (Load450g)
    Axial Play0.075mm Max. (Load950g)
    Temperature-10~+50°C (Non Condensing)
    Operating EnvironmentHumidity85%RH MAX. (Non Condensing)
    MediumNo corrosive gas or dust. Not directly in contact with water, oil, etc.
    Storage EnvironmentTemperature0~+50°C (Non Condensing
    Humidity85%RH MAX. (Non Condensing)
    Life5000 Hours MIN.

    Radial Load&Axial Load

    Motor SizeShaft Diameter (mm)Radial Load (N)Axial Load (N)
    Distance from Mounting Surface (mm)
    5101520253035
    NEMA8415123
    NEMA 1155035255
    NEMA 1455035252010
    NEMA 1755035252015
    NEMA 2382701801301009020
    NEMA 248200135100825830
    NEMA 341462055048039034029026060

    28mm 2-Phase Standard Type NEMA11 Bi-Polar stepper motor /Hybrid Stepping Motor


    Mode NoPST28H232-4P05

    PST28H232-4P10


    PST28H245-4P10


    PST28H245-4P15
    Holding Torque0.08 N.m0.08 N.m0.12 N.m0.12 N.m
    Related Current0.5A/Phase1A/Phase1A/Phase1.5A/Phase
    Resistance20 Ω /Phase5.7 Ω /Phase8.5 Ω /Phase3Ω /Phase
    Inductance14MH/Phase3.5MH/Phase6.5MH/Phase3MH/Phase
    Inertia9 g.cm29 g.cm212 g.cm212 g.cm2
    Weight0.1kgs0.1kgs0.15kgs0.15kgs
    Length32mm32mm45mm45mm

    Connection


    PPPP

    Mode NoPST28H251-4P10PST28H251-4P15
    Holding Torque0.14 N.m0.14 N.m
    Related Current1A/Phase1.5A/Phase
    Resistance9.9Ω /Phase3.5Ω /Phase
    Inductance6.7MH/Phase3.1MH/Phase
    Inertia18 g.cm218 g.cm2
    Weight0.2kgs0.2kgs
    Length51mm51mm
    ConnectionPP

    Speed/Torque Characteristics (Reference Value)

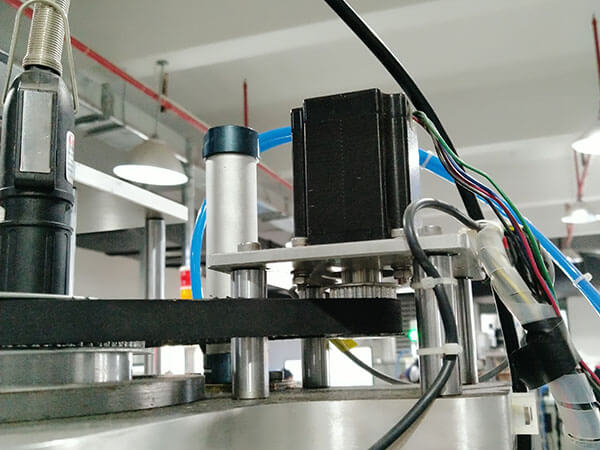

    Application

    Stepper motors are diverse in their uses, but some of the most common include:
    * 3D printing equipment
    * Textile machines
    * Printing presses
    * Gaming machines
    * Medical imaging machinery
    * Small robotics
    * CNC milling machines
    * Welding equipment
