    2 Phase Unipolar 3D Printer Stepper Motor Nema 14 HB Automatic

    Ask Lasest Price
    Brand Name : prostepper
    Model Number : PST35H226-6P12
    Certification : CE/ISO/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 250000pcs per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    2 Phase Unipolar 3D Printer Stepper Motor Nema 14 HB Automatic

    3D printer use 2 phase Nema14 HB Uni-polar PST35H226-6P12 Automatic Stepper Motor

    Features of prosteppers’ stepping motor

    Accurate Position Control

    Forward/Reverse Rotation, Pause and Hold

    Longer life

    Stepper motor is a mechanical structure, which does not need to be commutated by brush and Hall sensor, thus reducing the probability of failure and increasing the motor life. Stepping motor life


    General specifications


    SpecificationMotor Characteristics
    Insulation ClassClass B130°C
    Step Angle Accuracy±0.09°
    Withstand VoltageAC500V (one minute)
    Insulation Resistance100MQ MIN. 500VDC
    Temperature Rise80*C MAX
    Radial Play0.025mm Max. (Load450g)
    Axial Play0.075mm Max. (Load950g)
    Temperature-10~+50°C (Non Condensing)
    Operating EnvironmentHumidity85%RH MAX. (Non Condensing)
    MediumNo corrosive gas or dust. Not directly in contact with water, oil, etc.
    Storage EnvironmentTemperature0~+50°C (Non Condensing
    Humidity85%RH MAX. (Non Condensing)
    Life5000 Hours MIN.

    Radial Load&Axial Load

    Motor SizeShaft Diameter (mm)Radial Load (N)Axial Load (N)
    Distance from Mounting Surface (mm)
    5101520253035
    NEMA8415123
    NEMA 1155035255
    NEMA 1455035252010
    NEMA 1755035252015
    NEMA 2382701801301009020
    NEMA 248200135100825830
    NEMA 341462055048039034029026060

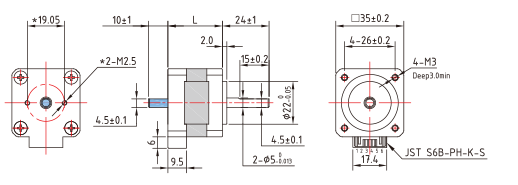

    The product detailed specification of 2 phase Nema14mm Uni-polar hybrid stepper motor can be refered as below:


    35mm 2-Phase Standard Type NEMA14 Uni-Polar 1.8゜


    Mode NoPST35H226-6P12

    PST35H236-6P12


    PST35H253-6P12
    Holding Torque0.07N.m0.12N.m0.25N.m
    Related Current1.2A/Phase1.2A/Phase1.2A/Phase
    Resistance3.5Ω /Phase3.1Ω /Phase4.8Ω /Phase
    Inductance1.2MH/Phase1.6MH/Phase3.2MH/Phase
    Inertia12g.cm220g.cm235g.cm2
    Weight0.15kgs0.21kgs0.24kgs
    Length53mm35mm53mm
    ConnectionPPP

    Speed/Torque Characteristics (Reference Value)



    Application of our stepper motor:


    Our products have wide applications in office automation such as printers, typewriters, copying machines and fax machines;


    automatic controls in automobile, machinery, textile, bank, monitor, medical instrument, stage lighting and Industrial


    Communication Device; household appliances such as kitchen appliance, water heater and sewing machine.
